SMM 810HS
140mm

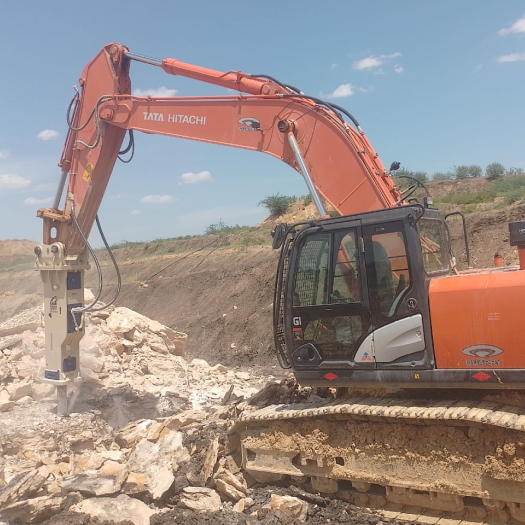

Introducing the SMM810SS rock breaker, an engineering marvel crafted for excellence in the most demanding environments. Ideal for quarrying, blue metal processing, limestone extraction, and earthworks, this advanced breaker promises precision, power, and versatility.

Connact With Us
  • Product Details
  • Specification
Usage/Application

SMM
Model

SMM 810HS
Suitable Carrier Bucket Volume

0.7 – 0.9 m3
Diameter of Tool

140 mm (Moil/Chisel/Blunt)
Diameter of Hose

25.4 mm or 1 inch
Total Weight

Side 1772 Kg,Top 1995 Kg,Box 1826 Kg
Weight of Tool

126 Kg
Lenght of Tool

1300 mm
Body Weight

922 Kg
Suitable Carrier Weight

18 – 26 Ton
Length

2823 mm
Operation Pressure

160 – 180 Kg/cm2
Hydraulic Flow Range

120 – 180 ltr/min
Width

620 mm
Switch Valve Type

Inward
Accumulator Exists

No
Impact Frequency

350 – 500 BPM
Pressure

16.5 Kg/cm2 (N2)
Total Weight (Kg)

1856
Operation Pressure (kg/cm2)

160 – 180
Oil Flow Range – l/min

120 – 180
Dia of Hose – Inch

1
Dia of Tool – mm

140
Impact Frequency – Bpm

350 -500
Suitable Carrier – Ton

18 – 26
