SMM 430S/435S
75mm/80mm

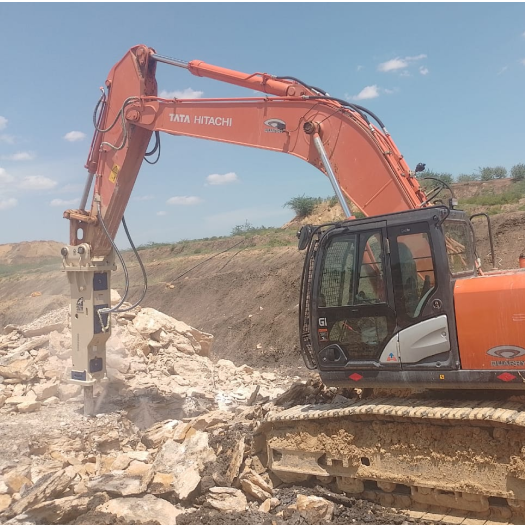

Elevate your mini excavator’s potential with the 435S Rock Breaker, designed for precision in general work, road construction, general construction, earth-moving, and building demolition. Renowned for their power, durability, and cost-effectiveness, they stand as undisputed leaders in their class.

Connact With Us

  • Product Details
  • Specification
Brand

SMM

Usage/Application

SMM

Accumulator Exists

No

Suitable Carrier Weight

6.0 – 9.0 Ton

Lenght of Tool

710 mm

Switch Valve Type

Inward

Body Weight

213 Kg

Suitable Carrier Bucket Volume

0.2-0.35 m3

Diameter of Tool

75 mm (Moil/Chisel/Blunt)

Weight of Tool

23 Kg

Total Weight

Side 379 Kg,Top 387 Kg,Box 375 Kg

Diameter of Hose

12.7 mm or 1/2 inch

Length

1699 mm

Width

353 mm

Impact Frequency

400 – 800 BPM

Hydraulic Flow Range

50 – 90 ltr/min

Operation Pressure

120 – 150 Kg/cm2

Pressure

16.5 Kg/cm2 (N2)

Type

Hydraulic

Model Name/Number

430s / 435S

Diameter

80 MM

Total Weight (Kg)

410

Operation Pressure (kg/cm2)

120 – 150

Oil Flow Range – l/min

50 – 90

Dia of Hose – Inch

1/2

Dia of Tool – mm

75 / 80

Impact Frequency – Bpm

400 – 800

Suitable Carrier – Ton

6.0 – 9.0
